Radon-Resistant Sealing Grommet For Pipes And Cables

The Partel KABSEAL GAS is a radon-resistant sealing grommet designed for the airtight sealing of pipes and cables in building envelopes, including floor slabs, walls, and ceilings. Suitable for both internal and external use, this durable grommet is made of permanently flexible rubber and offers exceptional adhesion, waterproofing properties, and resistance to ageing.

It is essential in newly constructed buildings to prevent health-hazardous gases from infiltrating living spaces through floor slabs, walls, or ceilings. To impede the ingress of harmful gases such as the radioactive noble gas radon from the subsoil, appropriate barriers, including seals and sufficiently thick building material layers, must be established. To avoid the convective transport of radon due to air pressure differences, it is crucial to ensure airtight design for connections, joints, openings, and other building elements.

KABSEAL GAS provides an effective radon-resistant solution for maintaining airtightness, ensuring long-lasting performance and durability in various construction projects. By following the installation guide and taking necessary precautions, you can achieve optimum adhesion and a secure seal. Choose Partel KABSEAL GAS for a reliable and efficient sealing solution for your pipes and cables, protecting your building from harmful radon gas and ensuring a healthy living environment.

Why Partel KABSEAL GAS

• Passive House Certified airtight system – phA Class
• Radon-resistant permanent sealing solution for pipes and cables
• Airtight connections according to Part L & DIN 4108-7.
• Made of permanently flexible rubber
• Extremely flexible conical grommet that offsets structural movement
• Excellent adhesion and waterproofing properties
• Strong acrylic adhesive with excellent ageing resistance
• Special aluminium butyl adhesive flange
• Split release liner for quick and easy installation

Technical Data

Application

Partel KABSEAL GAS is the preferred choice for Radon-resistant permanent sealing of pipes and cables in the building envelope. The convective transport of radon caused by differences in air pressure must be avoided by ensuring that connections, joints, and openings are designed to be airtight.

Porous substrates such as concrete, plaster, etc. are recommended to be treated in advance with Partel ACRAPRIME LIQUID or ACRAPRIME SPRAY.

Suitable for:

• Internal and external use
• Sealing pipes and cables in the building envelope
• Floor slabs, walls and ceilings
• Partel membranes, vapor control layers, and breathable membranes
• Bituminous membranes after removal of sanding and/or protective film

Dimensions

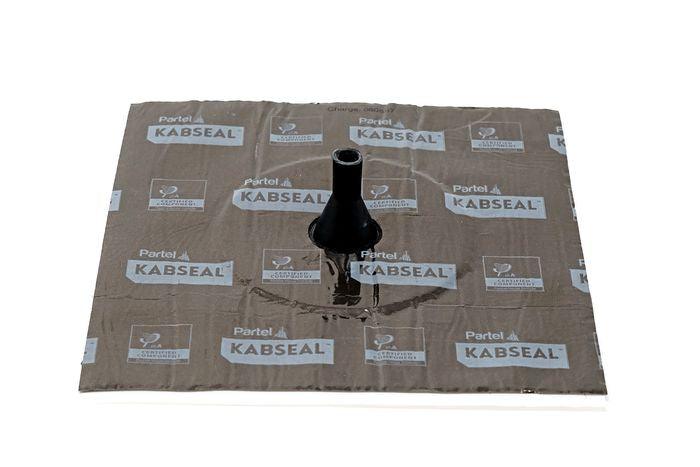

1. KABSEAL GAS 8-12
   Diameter: 8-12 mm (5/16" - 15/32")
   Adhesive sleeve: 150 x 150 mm (5 29/32" x 5 29/32")

2. KABSEAL GAS 15-22
   Diameter: 15-22 mm (19/32" - 7/8")
   Adhesive sleeve: 150 x 150 mm (5 29/32" x 5 29/32")

3. KABSEAL GAS 25-32
   Diameter: 25-32 mm (31/32" - 1 1/4")
   Adhesive sleeve: 150 x 150 mm (5 29/32" x 5 29/32")

4. KABSEAL GAS 72-90
   Diameter: 72-90 mm ( 2 27/32" - 3 17/32")
   Adhesive sleeve: 230 x 230 mm ( 9 1/16" x 9 1/16)

5. KABSEAL GAS 100-110
   Diameter: 100-110 mm (3 15/16" - 4 11/32")
   Adhesive sleeve: 320 x 320 mm (1' 19/32" x 1' 19/32")

6. KABSEAL GAS 125-140
   Diameter: 125-140 mm (4 29/32" - 5 1/2")
   Adhesive sleeve: 320 x 320 mm (1' 19/32" x 1' 19/32")

7. KABSEAL GAS 150-165
   Diameter: 150-165 mm ( 5 29/32" - 6 1/2")
   Adhesive sleeve: 350 x 350 mm (1' 1 25/32" - 1' 1 25/32")
